SPENDER TC-246H Plus

ประเภท : วิทยุเอกชน (245 MHz.)
ความถี่ : 245.0000 MHz.-246.9875 MHz.
ยี่ห้อ : SPENDER
รุ่น : TC-246H PLUS

Compare

รายละเอียด

  • 245.0000 – 246.9875 MHz.
  • 160 Channels, 39 Free Memories
  • Military Standard (USA) MIL-STD 810 Class : C/D/E/F and G
  • Ingress Protecion Ratings (IP67)
  • Voice Control 5 Levels
  • Super High Power>
  • 2 Years Warranty
  • FM Radio 87.5 – 108.0 MHz.
  • Battery Li-ION 2600 mAh.
  • 51 Code Of CTCSS
  • 214 Tone Of DCS
  • Vox Sensitivity
  • Duplex Function
  • Set Up Name Replace Channel
  • Auto Power Off
  • Roger Beep Sound
  • Calling Music
  • Auto Power Save
  • Memory Display Mode
  • High/Low Power
  • CTCSS Scan
  • DCS Scan
  • Scan Skip
  • Etc.

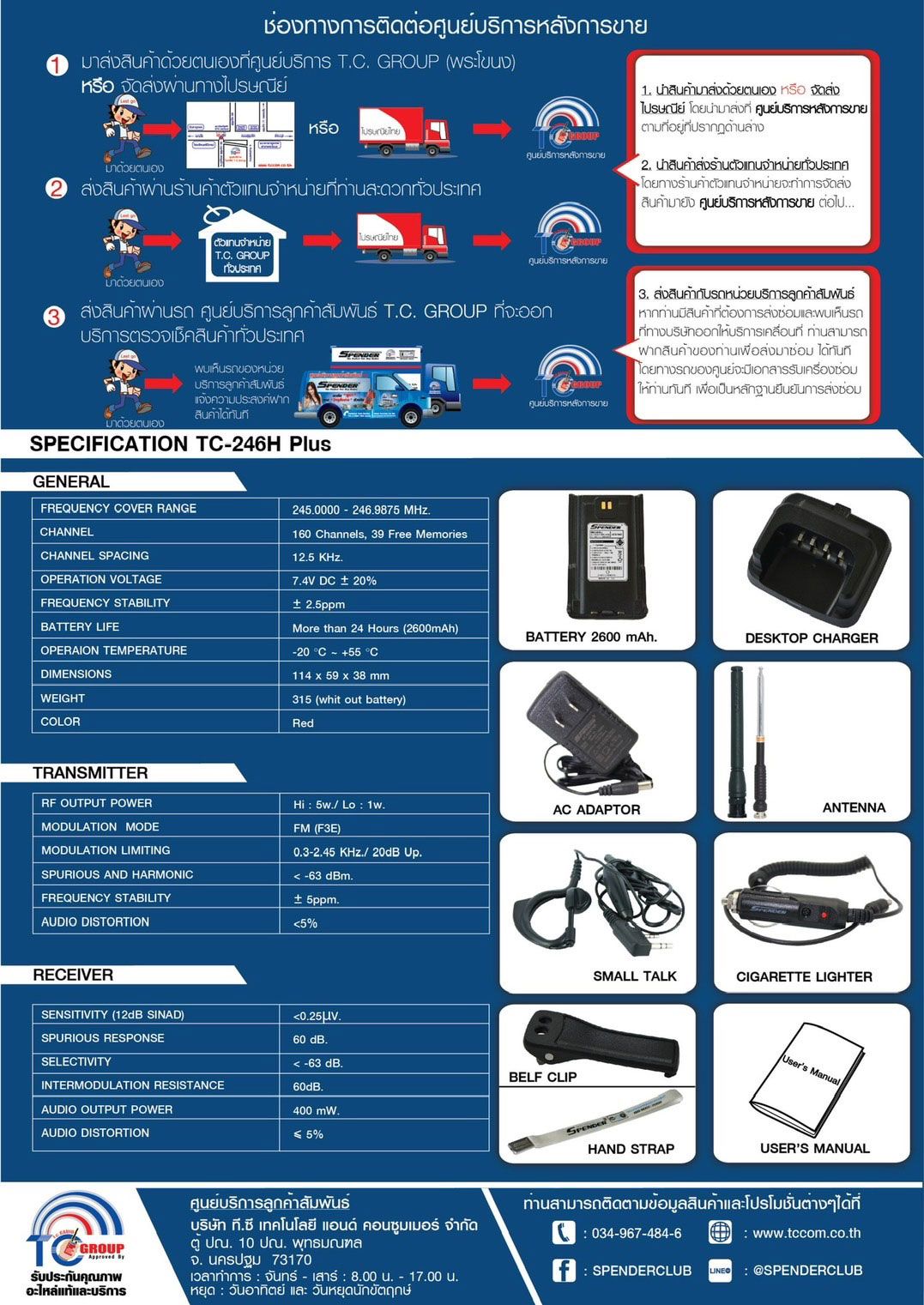

Specifications

GENERAL
Frequency Cover Range245.0000 – 246.9875MHz.
Channel No.160 Channles, 39Free Memories
Mode TypeFM (F3E)
Channel Spacing12.5 KHz.
Operation Voltage 7.4 V DC ±
Frequency Stability ± 2.5 ppm
Operation Temperature (-20 ºC to ~ + 55º C)
Battery LifeMore than 24 Hours (2600 mAh)
Dimensions114 x 59 x 33 mm (H x W x D)
TRANSMITTER
Output PowerHi : 5w./ Lo : 1 w.
ModulationFM (F3E)
Modulation Limiting0.3-2.45 KHz./ 20dB Up.
Spurious and Harmonic<-63 dBm.
Audio Distortion<5%
RECEIVER
Sensitivity< 0.25 µV at 12 dB./SINAD
Squelch Sensitivity< 0.158 µV
Selectivity< -63 dB.
Spurious Response 60dB.
Intermodulation Resistance 60dB.
Audio Frequency+/- 5ppm
Audio Output Power 400 mW.
Distortion ≤5% at 8 Ω Speaker
